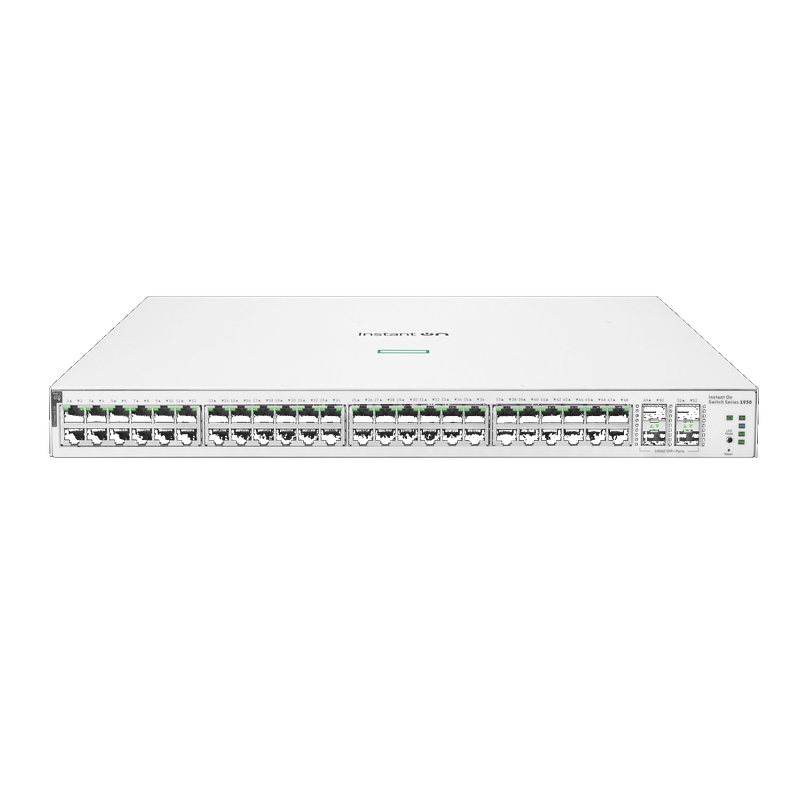

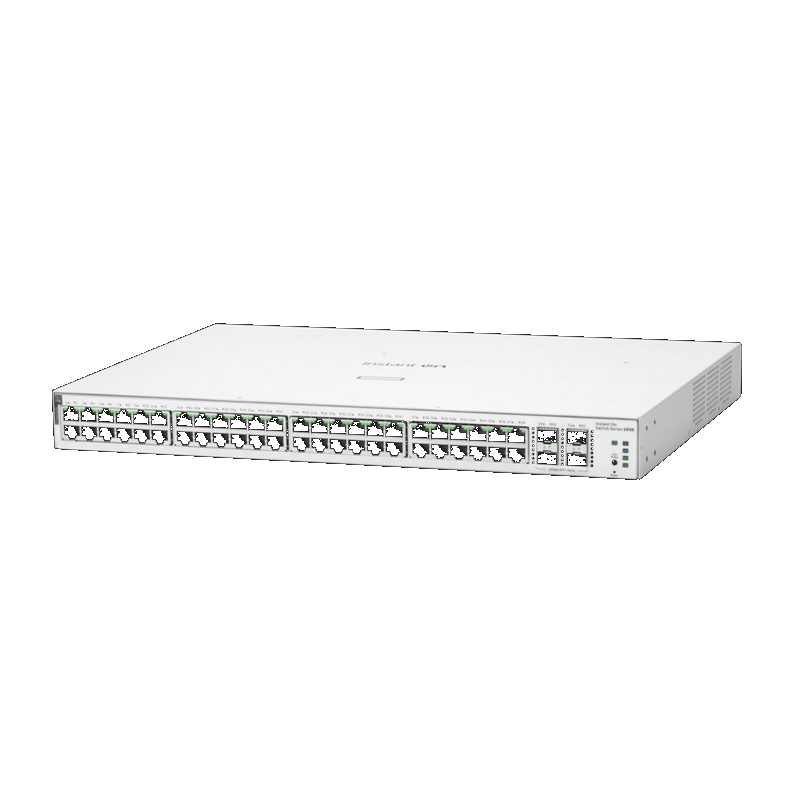

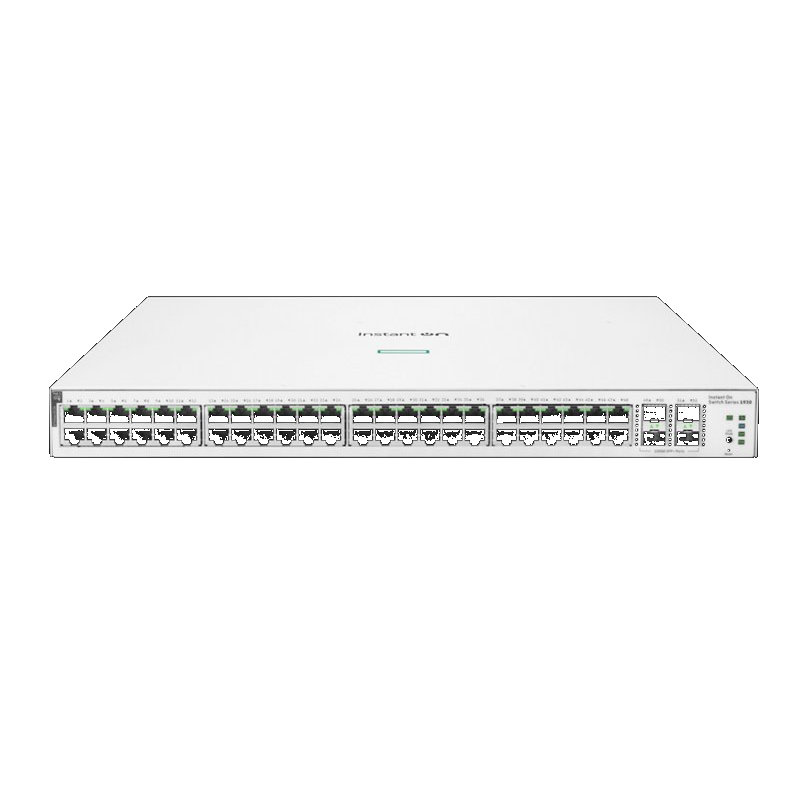

JL686B
The Aruba JL686B Instant On 1930 is a high-performance smart managed Gigabit PoE+ switch designed for enterprise networks, business environments, surveillance systems, and wireless deployments. It delivers reliable Layer 2+ switching, advanced security, cloud-managed networking, and high-speed fiber uplinks for modern business connectivity. :contentReference[oaicite:0]{index=0}
370W PoE+ Budget | 48x Gigabit Ethernet Ports | 4x 10G SFP+ Uplinks | Smart Managed Layer 2+ | Cloud Managed | Enterprise Networking
Specifications:
Brand: Aruba | Model: JL686B | Series: Instant On 1930 | Type: Smart Managed Gigabit PoE+ Switch | Ports: 48x RJ-45 10/100/1000 Ports + 4x SFP/SFP+ 1/10GbE Ports | PoE Standard: Class 4 PoE+ | PoE Budget: 370W | Switching Capacity: 176Gbps | Forwarding Rate: 130.95Mpps | Processor: ARM Cortex-A9 @ 800MHz | Memory: 512MB SDRAM | Flash: 256MB | Form Factor: 1U Rack Mount :contentReference[oaicite:1]{index=1}
Performance:
Gigabit Line-Speed Forwarding | Advanced Traffic Management | Reliable Multi-Device Connectivity | Low Latency Data Transfer | Enterprise-Grade Network Performance
Power:
Input Voltage: 100–127 / 200–240V AC | Maximum Power Consumption: 520W | Idle Power: 50W | Energy Efficient Design :contentReference[oaicite:2]{index=2}
Physical:
Dimensions: 440 × 235 × 43 mm | Weight: Approx. 4.1–4.6kg | Metal Chassis | Rack-Mount Design | Active Cooling System :contentReference[oaicite:3]{index=3}
Temperature:
Operating: 0°C to 50°C | Storage: -40°C to 70°C | Humidity: 10%–90% RH (non-condensing) :contentReference[oaicite:4]{index=4}
Features:
Layer 2+ Switching | VLAN Support | QoS Traffic Prioritization | Link Aggregation | IGMP Snooping | STP/RSTP/MSTP | PoE+ Support | Port Security | Jumbo Frame Support | Advanced Network Security :contentReference[oaicite:5]{index=5}
Management:
Aruba Instant On Cloud Management | Mobile App Management | Web GUI | SNMP Support | CLI Support | Remote Monitoring & Configuration :contentReference[oaicite:6]{index=6}
