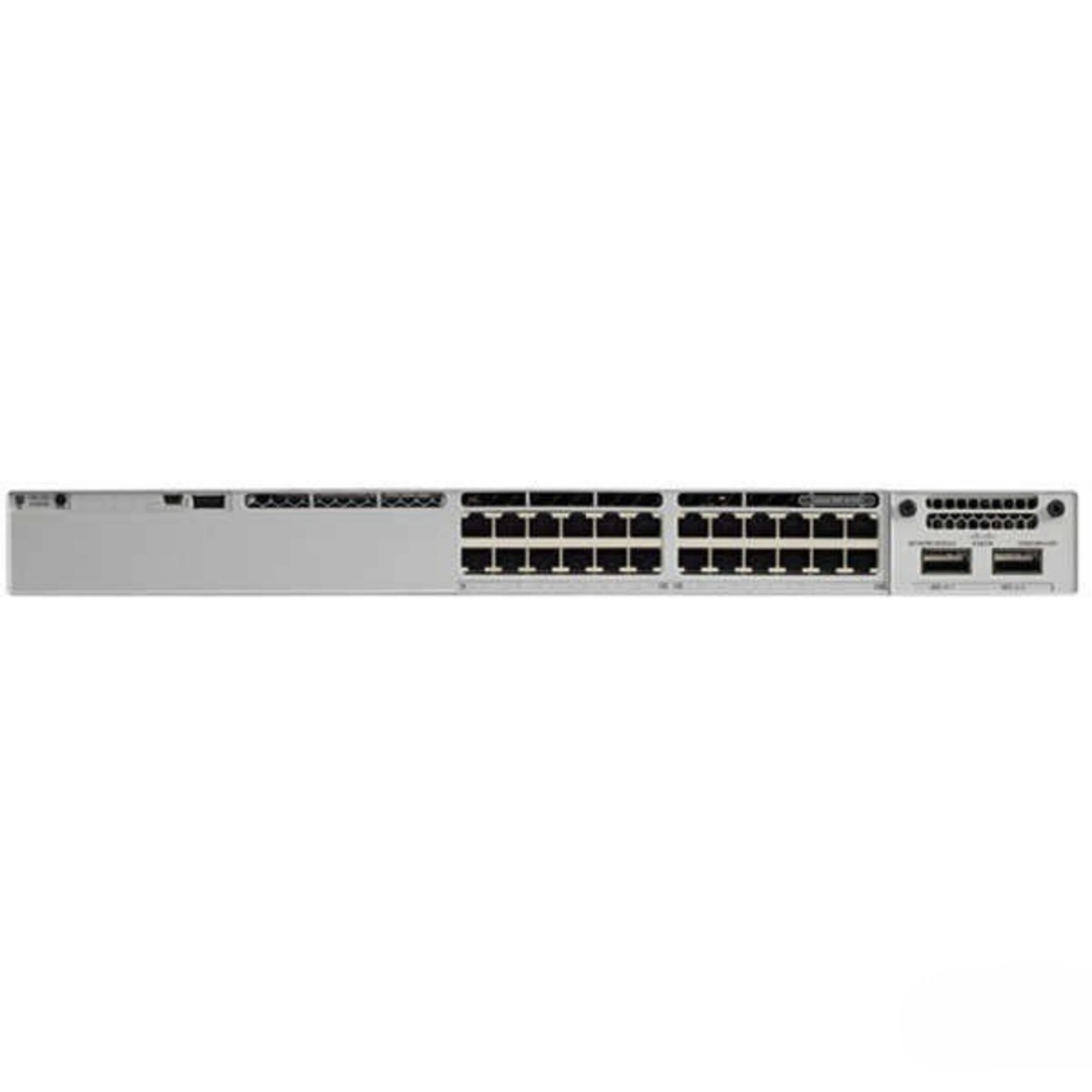

The C9300L-24T-4G-A is a Cisco Catalyst 9300L 24-Port Gigabit Enterprise Switch with Network Advantage License, designed for secure enterprise access, branch offices, and campus network deployments. It features 24 Gigabit Ethernet data ports, fixed 4x 1G SFP uplinks, 128 Gbps switching capacity, Cisco UADP ASIC architecture, StackWise-320 technology, advanced Layer 3 routing, enterprise-grade security, and Cisco DNA support for scalable, reliable, and high-performance networking.
Key Highlights
24x Gigabit Ethernet Data Ports | 4x 1G Fixed SFP Uplinks | 128 Gbps Switching | 95.23 Mpps Forwarding | StackWise-320 (320 Gbps) | Network Advantage License | Cisco UADP ASIC | Advanced Layer 3 Routing | Enterprise Security | 1U Rack
Specifications
Brand: Cisco | Model: C9300L-24T-4G-A | Series: Catalyst 9300L | License: Network Advantage | Ports: 24x 10/100/1000 Gigabit Ethernet Data | Uplinks: 4x 1G Fixed SFP | Switching: 128 Gbps | Forwarding: 95.23 Mpps | MAC Table: 32,000 | DRAM: 8GB | Flash: 16GB | Stacking: StackWise-320 | Expansion Slots: Fixed Uplinks | Power Supply: 350W AC | Form Factor: 1U Rack
Stacking
StackWise-320 | Up to 8 Switches | 320 Gbps Stacking Bandwidth | C9300L-STACK-KIT Required
Module Options
Fixed 4x 1G SFP Uplinks (No Modular Network Module)
L3 Features
BGP | OSPF | EIGRP | VRF | Policy-Based Routing | IPv4/IPv6 Routing | SD-Access | QoS | NSF/SSO | ISSU
Security
802.1X | ACL | DHCP Snooping | Dynamic ARP Inspection (DAI) | IP Source Guard | Control Plane Policing (CoPP) | MACsec | Secure Boot | Trustworthy Systems
Management
Cisco DNA Center | Cisco IOS XE | NETCONF/RESTCONF | SNMP | CLI | Streaming Telemetry
Temperature
Operating: -5°C to +45°C (Up to 1500m) | -5°C to +40°C (Up to 3000m)
The C9300L-24T-4G-A is a Cisco Catalyst 9300L 24-Port Gigabit Enterprise Switch with Network Advantage License, designed for secure enterprise access, branch offices, and campus network deployments. It features 24 Gigabit Ethernet data ports, fixed 4x 1G SFP uplinks, 128 Gbps switching capacity, Cisco UADP ASIC architecture, StackWise-320 technology, advanced Layer 3 routing, enterprise-grade security, and Cisco DNA support for scalable, reliable, and high-performance networking.
Key Highlights
24x Gigabit Ethernet Data Ports | 4x 1G Fixed SFP Uplinks | 128 Gbps Switching | 95.23 Mpps Forwarding | StackWise-320 (320 Gbps) | Network Advantage License | Cisco UADP ASIC | Advanced Layer 3 Routing | Enterprise Security | 1U Rack
Specifications
Brand: Cisco | Model: C9300L-24T-4G-A | Series: Catalyst 9300L | License: Network Advantage | Ports: 24x 10/100/1000 Gigabit Ethernet Data | Uplinks: 4x 1G Fixed SFP | Switching: 128 Gbps | Forwarding: 95.23 Mpps | MAC Table: 32,000 | DRAM: 8GB | Flash: 16GB | Stacking: StackWise-320 | Expansion Slots: Fixed Uplinks | Power Supply: 350W AC | Form Factor: 1U Rack
Stacking
StackWise-320 | Up to 8 Switches | 320 Gbps Stacking Bandwidth | C9300L-STACK-KIT Required
Module Options
Fixed 4x 1G SFP Uplinks (No Modular Network Module)
L3 Features
BGP | OSPF | EIGRP | VRF | Policy-Based Routing | IPv4/IPv6 Routing | SD-Access | QoS | NSF/SSO | ISSU
Security
802.1X | ACL | DHCP Snooping | Dynamic ARP Inspection (DAI) | IP Source Guard | Control Plane Policing (CoPP) | MACsec | Secure Boot | Trustworthy Systems
Management
Cisco DNA Center | Cisco IOS XE | NETCONF/RESTCONF | SNMP | CLI | Streaming Telemetry
Temperature
Operating: -5°C to +45°C (Up to 1500m) | -5°C to +40°C (Up to 3000m)
