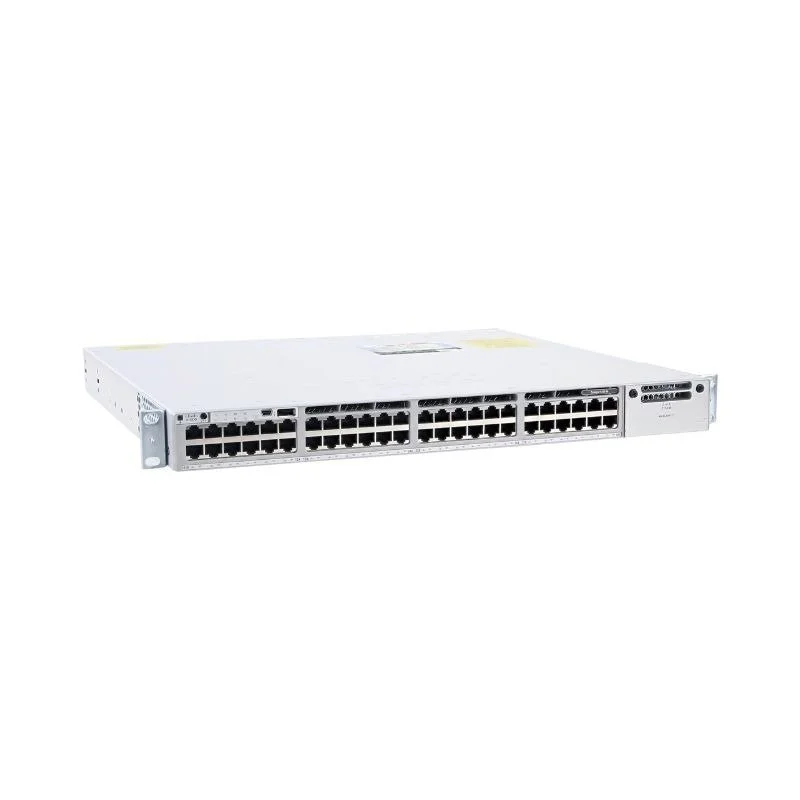

Cisco C9300L-48P-4X-A

The C9300L-48P-4X-A is a Cisco Catalyst 9300L 48-Port Gigabit PoE+ L2/L3 Enterprise Switch with 4x 10G SFP+ Fixed Uplinks and Network Advantage License — delivering 416 Gbps switching, StackWise-480, and SD-Access for secure, scalable campus and branch network deployments.

48x Gigabit PoE+ Ports | 4x 10G SFP+ Fixed Uplinks | 445W PoE Budget | 416 Gbps Switching | 309.52 Mpps Forwarding | StackWise-480 (480 Gbps) | Network Advantage License | SD-Access | 1U Rack

Specifications:

Brand: Cisco | Model: C9300L-48P-4X-A | Series: Catalyst 9300L | License: Network Advantage | Ports: 48x 10/100/1000 PoE+ RJ45 + 4x 10G SFP+ Fixed Uplinks | PoE Budget: 445W (1440W with optional 2nd PSU) | Switching: 416 Gbps | Forwarding: 309.52 Mpps | MAC Table: 32,000 | DRAM: 8GB | Flash: 16GB | Form Factor: 1U Rack

Stacking:

StackWise-480 | Up to 8 Switches | 480 Gbps Stacking Bandwidth

L3 Features:

BGP | OSPF | EIGRP | VRF | VXLAN | SD-Access | MACsec | TrustSec | SGT | NSF/SSO | ISSU

Security:

802.1X | ACL | DHCP Snooping | DAI | IP Source Guard | CoPP | Encrypted Traffic Analytics | Secure Boot

Management:

Cisco DNA Center | IOS XE | NETCONF/RESTCONF | SNMP | CLI | Streaming Telemetry

Temperature:

Operating: -5°C to +45°C (up to 1500m) | -5°C to +40°C (up to 3000m)
