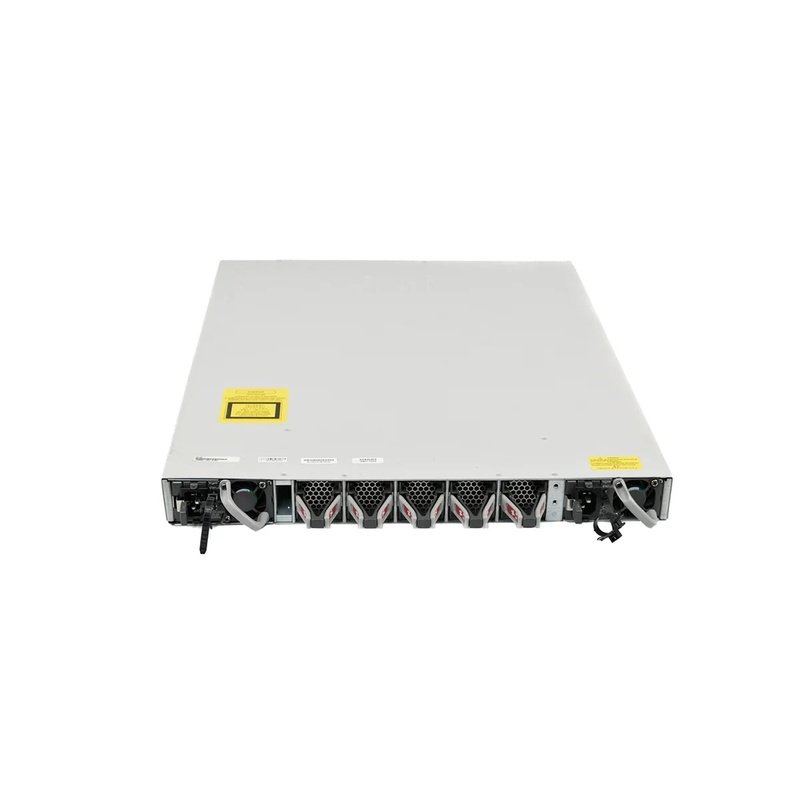

Cisco C9500-16X-A

The C9500-16X-A is a Cisco Catalyst 9500 Series 16-Port 1/10G L3 Enterprise Core Switch with Network Advantage License — powered by a 4-core x86 2.4GHz CPU, supporting SD-Access, MPLS VPNs, MACsec 256-bit, StackWise Virtual, and redundant AC power for high-availability campus core and aggregation deployments.

16x 1/10G SFP/SFP+ Ports | 8x 1/10G or 2x 40G Uplinks | Network Advantage License | 4-Core x86 2.4GHz CPU | 16GB DDR4 | SD-Access | MPLS L2/L3 VPN | MACsec 256-bit | StackWise Virtual | Redundant AC PSU | 1U Rack

Specifications:

Brand: Cisco | Model: C9500-16X-A | Series: Catalyst 9500 | License: Network Advantage | Ports: 16x 1/10G SFP/SFP+ | Uplinks: 8x 1/10G or 2x 40G | CPU: 4-Core x86 @ 2.4GHz | RAM: 16GB DDR4 | Storage: 16GB Internal | Dimensions: 1.73 x 17.5 x 21.5 in. | Form Factor: 1U Rack | Airflow: Front-to-Back

Power:

Input: 90–264V AC | PSU: Redundant AC (2x Slots) | Included: 1x PWR-C4-950WAC-R

L3 Features:

BGP | OSPF | EIGRP | RIP | MPLS L2/L3 VPN | MVPN | NAT | VRF-aware LISP | SD-Access | StackWise Virtual

Security:

MACsec 256-bit | ACL | QoS | TrustSec | Cisco Trustworthy Solutions

Management:

Cisco DNA Center | IOS XE | SD-Access | GIR | NSF/SSO | Hot Patching | Cisco UADP ASIC
