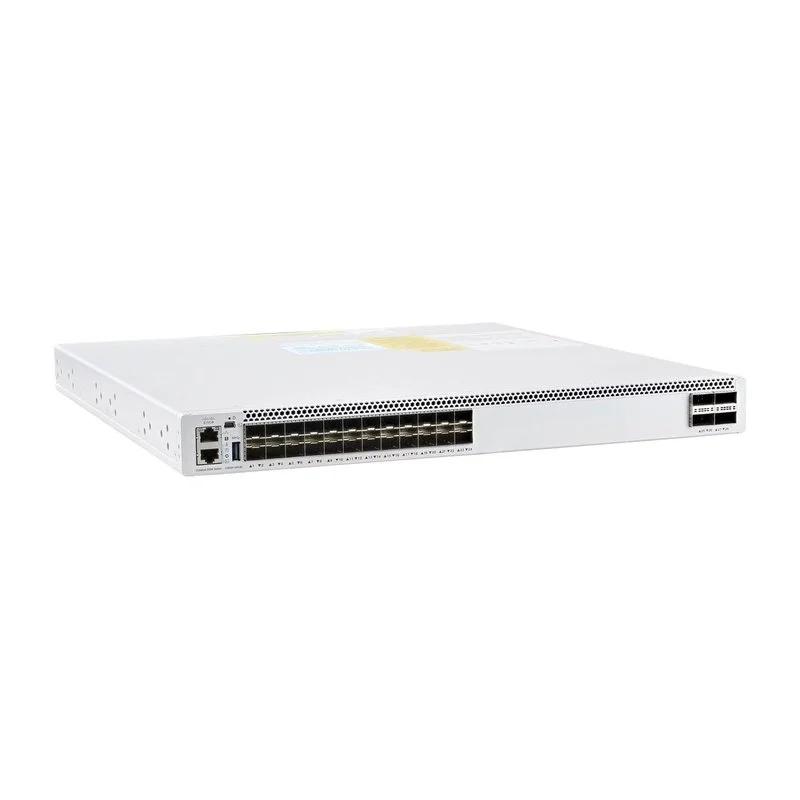

Cisco C9500-24Y4C-A

The C9500-24Y4C-A is a Cisco Catalyst 9500 Series 28-Port High-Performance L3 Core Switch with Network Advantage License — delivering 2 Tbps switching with 24x 1/10/25G SFP28 ports and 4x 40/100G QSFP28 uplinks, powered by UADP 3.0 ASIC and 4-core x86 CPU for enterprise campus core and data center aggregation.

2 Tbps Switching | 1 Bpps Forwarding | 24x 1/10/25G SFP28 + 4x 40/100G QSFP28 | Network Advantage License | UADP 3.0 ASIC | 4-Core x86 2.4GHz | 16GB DDR4 | MACsec | StackWise Virtual | SD-Access | 1U Rack

Specifications:

Brand: Cisco | Model: C9500-24Y4C-A | Series: Catalyst 9500 | License: Network Advantage | Ports: 24x 1/10/25G SFP28 + 4x 40/100G QSFP28 | Switching: 2 Tbps | Forwarding: 1 Bpps | MAC Table: 82,000 | IPv4 Routes: 212,000 | CPU: 4-Core x86 @ 2.4GHz | RAM: 16GB DDR4 | Dimensions: 1.73 x 17.5 x 18.0 in. | Weight: 9.96 kg | Form Factor: 1U Rack | Airflow: Front-to-Back

Power:

Input: 90–264V AC | PSU: C9K-PWR-650WAC-R or C9K-PWR-930WDC-R | Hot-Swappable Redundant

L3 Features:

BGP | OSPF | EIGRP | MPLS L2/L3 VPN | VRF-Lite | MVPN | MACsec | SGT/TrustSec | SD-Access | StackWise Virtual

Management:

Cisco DNA Center | IOS XE | NETCONF/YANG | OpenConfig | Streaming Telemetry | CLI
