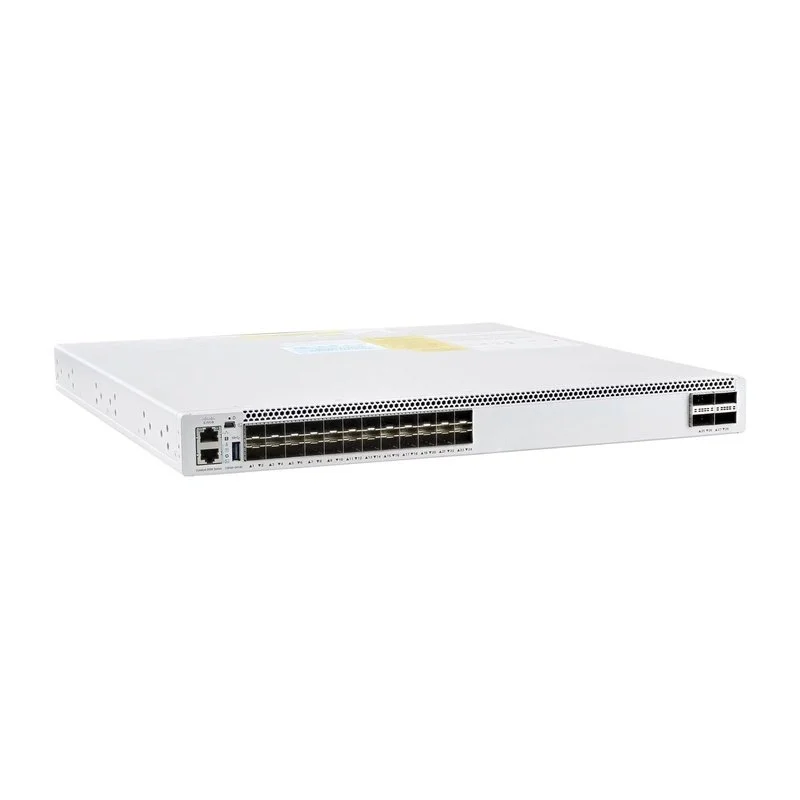

The C9500-32C-A is a Cisco Catalyst 9500 Series 32-Port 100G High-Performance L3 Core Switch with Network Advantage License — delivering 6.4 Tbps switching with 32x 100G QSFP28 ports, UADP 3.0 ASIC, 4-core x86 CPU, MACsec 256-bit, and StackWise Virtual for enterprise campus core and data center aggregation.
6.4 Tbps Switching | 2 Bpps Forwarding | 32x 100G QSFP28 Ports | 4x25G/4x10G Breakout | Network Advantage License | UADP 3.0 ASIC | 4-Core x86 2.4GHz | 16GB DDR4 | MACsec 256-bit | StackWise Virtual | SD-Access | 1U Rack
Specifications:
Brand: Cisco | Model: C9500-32C-A | Series: Catalyst 9500 | License: Network Advantage | Ports: 32x 100G QSFP28 | Breakout: 4x25G or 4x10G per port | Switching: 6.4 Tbps | Forwarding: 2 Bpps | MAC Table: 82,000 | IPv4 Routes: 100,000 | CPU: 4-Core x86 @ 2.4GHz | RAM: 16GB DDR4 | Storage: 16GB Internal (up to 960GB SATA SSD) | Dimensions: 1.73 x 17.5 x 21.2 in. | Weight: 11.63 kg | Form Factor: 1U Rack | Airflow: Front-to-Back
Power:
Input: 90–264V AC | PSU: C9K-PWR-1600WAC-R or C9K-PWR-1600WDC-R | Hot-Swappable Redundant
L3 Features:
BGP | OSPF | EIGRP | IS-IS | MPLS L2/L3 VPN | VXLAN EVPN | VRF-Lite | Segment Routing | MACsec | SGT/TrustSec | SD-Access | StackWise Virtual | NSF/SSO | ISSU
Management:
Cisco Catalyst Center | IOS XE | NETCONF/RESTCONF | OpenConfig | Streaming Telemetry | CLI
The C9500-32C-A is a Cisco Catalyst 9500 Series 32-Port 100G High-Performance L3 Core Switch with Network Advantage License — delivering 6.4 Tbps switching with 32x 100G QSFP28 ports, UADP 3.0 ASIC, 4-core x86 CPU, MACsec 256-bit, and StackWise Virtual for enterprise campus core and data center aggregation.
6.4 Tbps Switching | 2 Bpps Forwarding | 32x 100G QSFP28 Ports | 4x25G/4x10G Breakout | Network Advantage License | UADP 3.0 ASIC | 4-Core x86 2.4GHz | 16GB DDR4 | MACsec 256-bit | StackWise Virtual | SD-Access | 1U Rack
Specifications:
Brand: Cisco | Model: C9500-32C-A | Series: Catalyst 9500 | License: Network Advantage | Ports: 32x 100G QSFP28 | Breakout: 4x25G or 4x10G per port | Switching: 6.4 Tbps | Forwarding: 2 Bpps | MAC Table: 82,000 | IPv4 Routes: 100,000 | CPU: 4-Core x86 @ 2.4GHz | RAM: 16GB DDR4 | Storage: 16GB Internal (up to 960GB SATA SSD) | Dimensions: 1.73 x 17.5 x 21.2 in. | Weight: 11.63 kg | Form Factor: 1U Rack | Airflow: Front-to-Back
Power:
Input: 90–264V AC | PSU: C9K-PWR-1600WAC-R or C9K-PWR-1600WDC-R | Hot-Swappable Redundant
L3 Features:
BGP | OSPF | EIGRP | IS-IS | MPLS L2/L3 VPN | VXLAN EVPN | VRF-Lite | Segment Routing | MACsec | SGT/TrustSec | SD-Access | StackWise Virtual | NSF/SSO | ISSU
Management:
Cisco Catalyst Center | IOS XE | NETCONF/RESTCONF | OpenConfig | Streaming Telemetry | CLI
