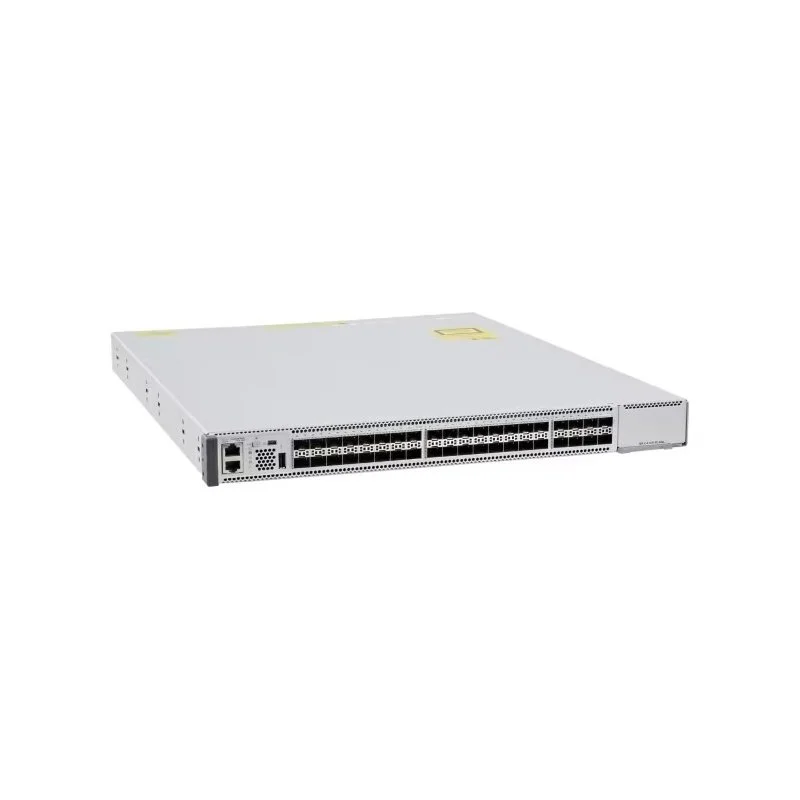

Cisco C9500-40X-A

The C9500-40X-A is a Cisco Catalyst 9500 Series 40-Port 10G L3 Enterprise Core Switch with Network Advantage License — delivering 960 Gbps switching with 40x 1/10G SFP+ ports, UADP 2.0 XL ASIC, 4-core x86 CPU, MACsec 256-bit, and StackWise Virtual for enterprise campus core and aggregation deployments.

960 Gbps Switching | 720 Mpps Forwarding | 40x 1/10G SFP+ Ports | 1x Modular Uplink Slot | Network Advantage License | UADP 2.0 XL ASIC | 4-Core x86 2.4GHz | 16GB DDR4 | MACsec 256-bit | StackWise Virtual | SD-Access | 1U Rack

Specifications:

Brand: Cisco | Model: C9500-40X-A | Series: Catalyst 9500 | License: Network Advantage | Ports: 40x 1/10G SFP+ | Uplink Slot: 1x (C9500-NM-2Q or C9500-NM-8X, not included) | Switching: 960 Gbps | Forwarding: 720 Mpps | MAC Table: 64,000 | IPv4 Routes: 64,000 indirect + 32,000 host | VLANs: 4,000 | CPU: 4-Core x86 @ 2.4GHz | RAM: 16GB DDR4 | Storage: 16GB Flash (up to 960GB SSD) | Dimensions: 1.73 x 17.5 x 21.52 in. | Weight: 11.68 kg | Form Factor: 1U Rack | Airflow: Front-to-Back

Power:

Input: 90–264V AC | PSU: PWR-C4-950WAC-R or PWR-C4-950WDC-R | Hot-Swappable Redundant

L3 Features:

BGP | OSPF | EIGRP | MPLS L2/L3 VPN | VXLAN | VRF-Lite | LISP | NAT | MACsec | SGT/TrustSec | SD-Access | StackWise Virtual | NSF/SSO | ISSU

Management:

Cisco Catalyst Center | IOS XE | NETCONF/RESTCONF | Streaming Telemetry | CLI
