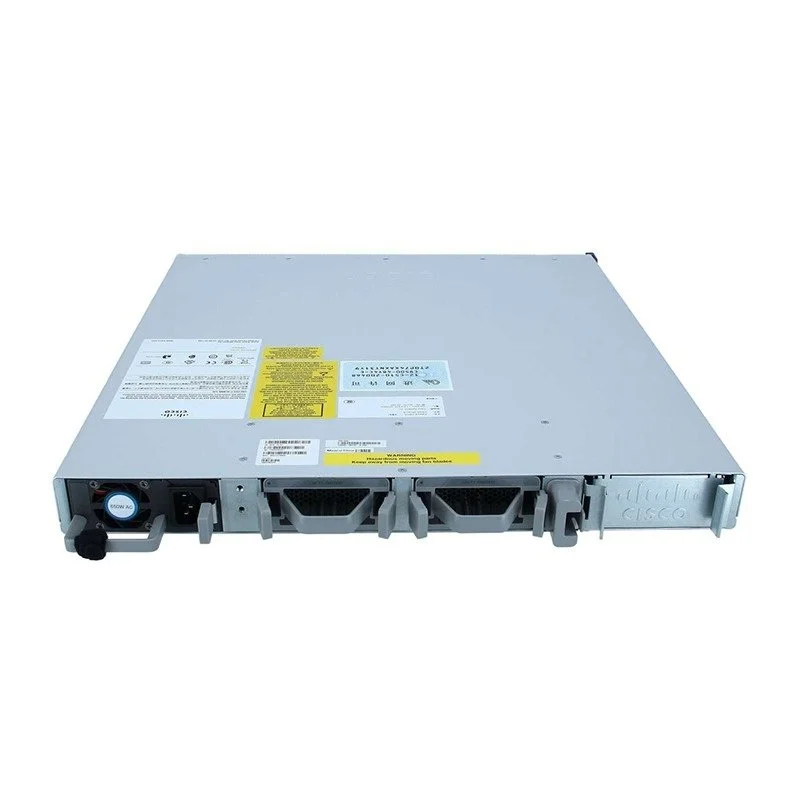

Cisco C9500-48X-A

The C9500-48X-A is a Cisco Catalyst 9500 Series 48-Port 10G L3 Enterprise Core Switch with Network Advantage License — featuring 40x fixed 10G SFP+ ports plus included C9500-NM-8X module (8x 10G SFP+), 960 Gbps switching, UADP 2.0 XL ASIC, MACsec 256-bit, and StackWise Virtual for enterprise campus core and aggregation deployments.

960 Gbps Switching | 720 Mpps Forwarding | 40x Fixed 10G SFP+ + 8x 10G SFP+ (C9500-NM-8X Included) | Network Advantage License | UADP 2.0 XL ASIC | 4-Core x86 2.4GHz | 16GB DDR4 | MACsec 256-bit | StackWise Virtual | SD-Access | 1U Rack

Specifications:

Brand: Cisco | Model: C9500-48X-A | Series: Catalyst 9500 | License: Network Advantage | Ports: 40x 10G SFP+ + 8x 10G SFP+ (C9500-NM-8X included) | Switching: 960 Gbps | Forwarding: 720 Mpps | MAC Table: 64,000 | CPU: 4-Core x86 @ 2.4GHz | RAM: 16GB DDR4 | Storage: 16GB Flash (up to 960GB SSD) | Dimensions: 1.73 x 17.5 x 21.52 in. | Form Factor: 1U Rack | Airflow: Front-to-Back

Included Module: C9500-NM-8X (8x 10G SFP+)

Power:

Input: 90–264V AC | PSU: PWR-C4-950WAC-R or PWR-C4-950WDC-R | Hot-Swappable Redundant

L3 Features:

BGP | OSPF | EIGRP | IS-IS | MPLS L2/L3 VPN | VXLAN | VRF-Lite | LISP | NAT | MACsec | SGT/TrustSec | SD-Access | StackWise Virtual | NSF/SSO | ISSU

Management:

Cisco Catalyst Center | IOS XE | NETCONF/RESTCONF | Streaming Telemetry | CLI
