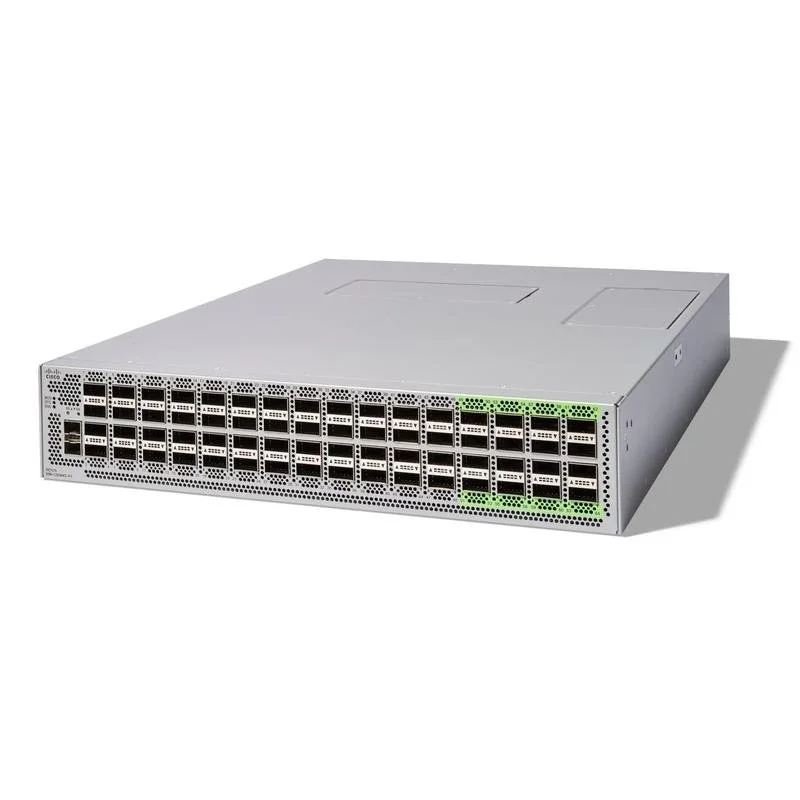

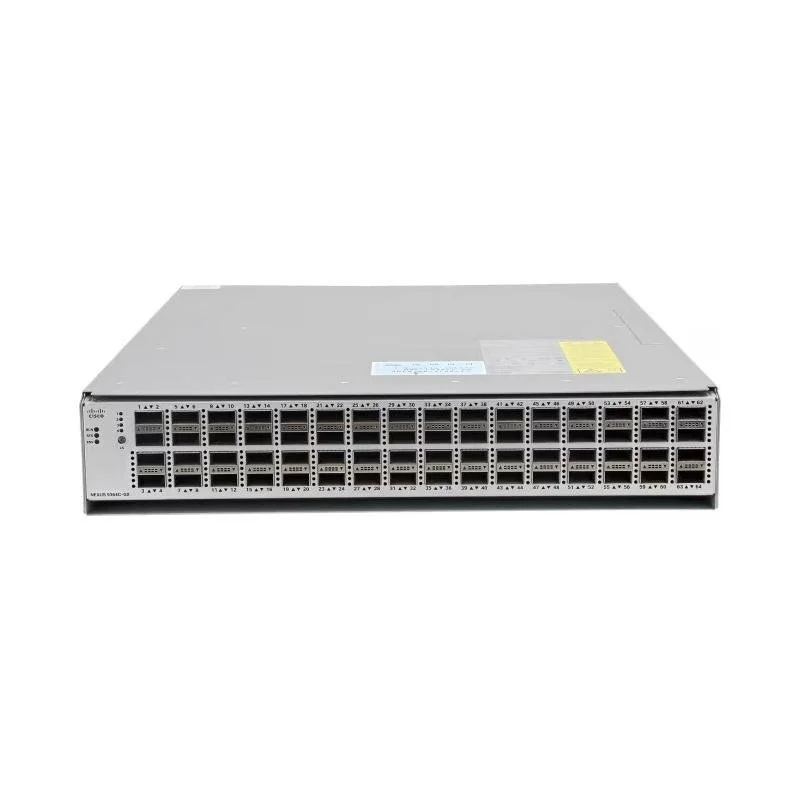

The N9K-C9364C is a Cisco Nexus 9364C 2RU ACI Spine Switch delivering 12.84 Tbps switching with 64x 40/100G QSFP28 ports and 2x 1/10G SFP+ ports — supporting wire-rate MACsec on last 16 ports, NX-OS and ACI modes for high-density spine-leaf data center fabrics.
64x 40/100G QSFP28 Ports | 2x 1/10G SFP+ Ports | 12.84 Tbps Switching | 4.3 Bpps Forwarding | MACsec (Last 16 Ports) | MAC Table 92K | NX-OS + ACI | 32GB RAM | 256GB SSD | 2U Rack
Specifications:
Brand: Cisco | Model: N9K-C9364C | Series: Nexus 9000 | Ports: 64x 40/100G QSFP28 + 2x 1/10G SFP+ | Switching Capacity: 12.84 Tbps | Forwarding Rate: 4.3 Bpps | MAC Table: 92,000 entries | CPU: Broadwell-DE 4-Core | RAM: 32GB | SSD: 256GB | USB: 1 | Management: 1x 10/100/1000BASE-T + 1x 1G SFP+ | Serial: 1x RS-232 | Form Factor: 2U Rack | Weight: 16.74 kg (with PSU + Fans) | Dimensions: 8.6 x 44.1 x 56.5 cm | Airflow: Port-side Intake or Exhaust (selectable)
MACsec: Wire-rate on Ports 49–64 (last 16 QSFP28 ports)
Power:
Up to 2x PSU | 1200W AC | 930W DC | 1200W HVAC/HVDC | Input: 100–240V AC
L3 Features:
BGP | OSPF | EIGRP | PIM | VXLAN + EVPN | HSRP | VRRP | ECMP
L2 Features:
802.1Q VLAN | MSTP | RPVST+ | vPC | LACP | MACsec (IEEE 802.1AE)
Management:
NX-OS | ACI Mode | Python | NX-API | Streaming Telemetry | POAP
High Availability:
Dual Hot-Swap PSU | Hot-Swap Redundant Fan Trays
