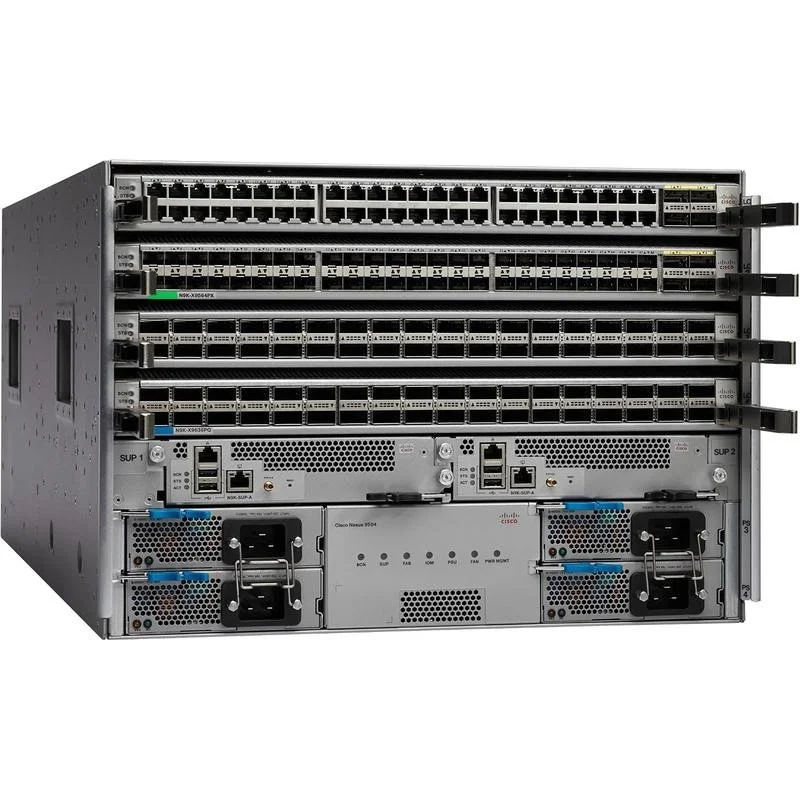

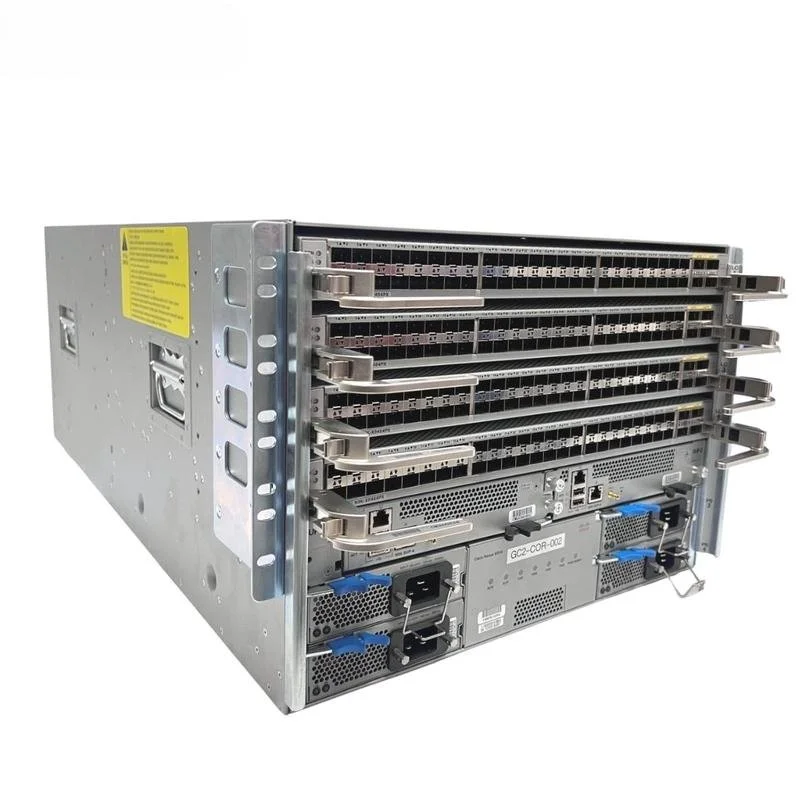

The N9K-C9504 is a Cisco Nexus 9500 Series 4-slot modular data center chassis supporting up to 512x 100GE or 2304x 10GE ports — with backplane bandwidth up to 115.2 Tbps, ultra-low latency, redundant components, and support for NX-OS and ACI modes for spine, core, and aggregation deployments.
4x Line Card Slots | Up to 512x 100GE Ports | 115.2 Tbps Backplane | Ultra-Low Latency (5 µs) | Redundant Supervisors + PSU + Fans | VXLAN + EVPN | Segment Routing | MPLS | NX-OS + ACI | 7U Modular Chassis
Specifications:
Brand: Cisco | Model: N9K-C9504 | Series: Nexus 9500 | Form Factor: 7U Modular Chassis | Line Card Slots: 4 | Fabric Module Slots: 6 | Supervisor Slots: 2 | System Controller Slots: 2 | Fan Trays: 3 | Backplane Bandwidth: Up to 115.2 Tbps
Port Scalability (depending on line cards):
Up to 2304x 10GE | Up to 2048x 25GE | Up to 576x 40GE | Up to 1024x 50GE | Up to 512x 100GE | Up to 400GE (with Cloud Scale line cards)
Supported Line Cards:
36-port 40/100G QSFP28 | 32-port 100G QSFP28 | 16-port 400G QSFP-DD | And more
Power:
Up to 4x 3kW AC PSU (with redundancy) | Hot-Swappable PSU + Fan Trays
L3 Features:
BGP | OSPF | EIGRP | PIM | VXLAN + EVPN | Segment Routing | MPLS | HSRP | VRRP | ECMP
L2 Features:
802.1Q VLAN | MSTP | RPVST+ | vPC | LACP | MACsec
Management:
NX-OS | ACI Mode | POAP | Python | NX-API | RESTCONF/NETCONF | Streaming Telemetry | Cisco DCNM | Nexus Fabric Manager
High Availability:
Redundant Supervisors | Redundant System Controllers | Hot-Swap PSU | Hot-Swap Fan Trays | No Single Point of Failure
The N9K-C9504 is a Cisco Nexus 9500 Series 4-slot modular data center chassis supporting up to 512x 100GE or 2304x 10GE ports — with backplane bandwidth up to 115.2 Tbps, ultra-low latency, redundant components, and support for NX-OS and ACI modes for spine, core, and aggregation deployments.
4x Line Card Slots | Up to 512x 100GE Ports | 115.2 Tbps Backplane | Ultra-Low Latency (5 µs) | Redundant Supervisors + PSU + Fans | VXLAN + EVPN | Segment Routing | MPLS | NX-OS + ACI | 7U Modular Chassis
Specifications:
Brand: Cisco | Model: N9K-C9504 | Series: Nexus 9500 | Form Factor: 7U Modular Chassis | Line Card Slots: 4 | Fabric Module Slots: 6 | Supervisor Slots: 2 | System Controller Slots: 2 | Fan Trays: 3 | Backplane Bandwidth: Up to 115.2 Tbps
Port Scalability (depending on line cards):
Up to 2304x 10GE | Up to 2048x 25GE | Up to 576x 40GE | Up to 1024x 50GE | Up to 512x 100GE | Up to 400GE (with Cloud Scale line cards)
Supported Line Cards:
36-port 40/100G QSFP28 | 32-port 100G QSFP28 | 16-port 400G QSFP-DD | And more
Power:
Up to 4x 3kW AC PSU (with redundancy) | Hot-Swappable PSU + Fan Trays
L3 Features:
BGP | OSPF | EIGRP | PIM | VXLAN + EVPN | Segment Routing | MPLS | HSRP | VRRP | ECMP
L2 Features:
802.1Q VLAN | MSTP | RPVST+ | vPC | LACP | MACsec
Management:
NX-OS | ACI Mode | POAP | Python | NX-API | RESTCONF/NETCONF | Streaming Telemetry | Cisco DCNM | Nexus Fabric Manager
High Availability:
Redundant Supervisors | Redundant System Controllers | Hot-Swap PSU | Hot-Swap Fan Trays | No Single Point of Failure
