Cisco PWR-C1-350WAC-P
PWR-C1-350WAC-P
PWR-C1-350WAC-P
Cisco PWR-C1-350WAC-P
PWR-C1-350WAC-P
PWR-C1-350WAC-P

Cisco PWR-C1-350WAC-P

$0.00

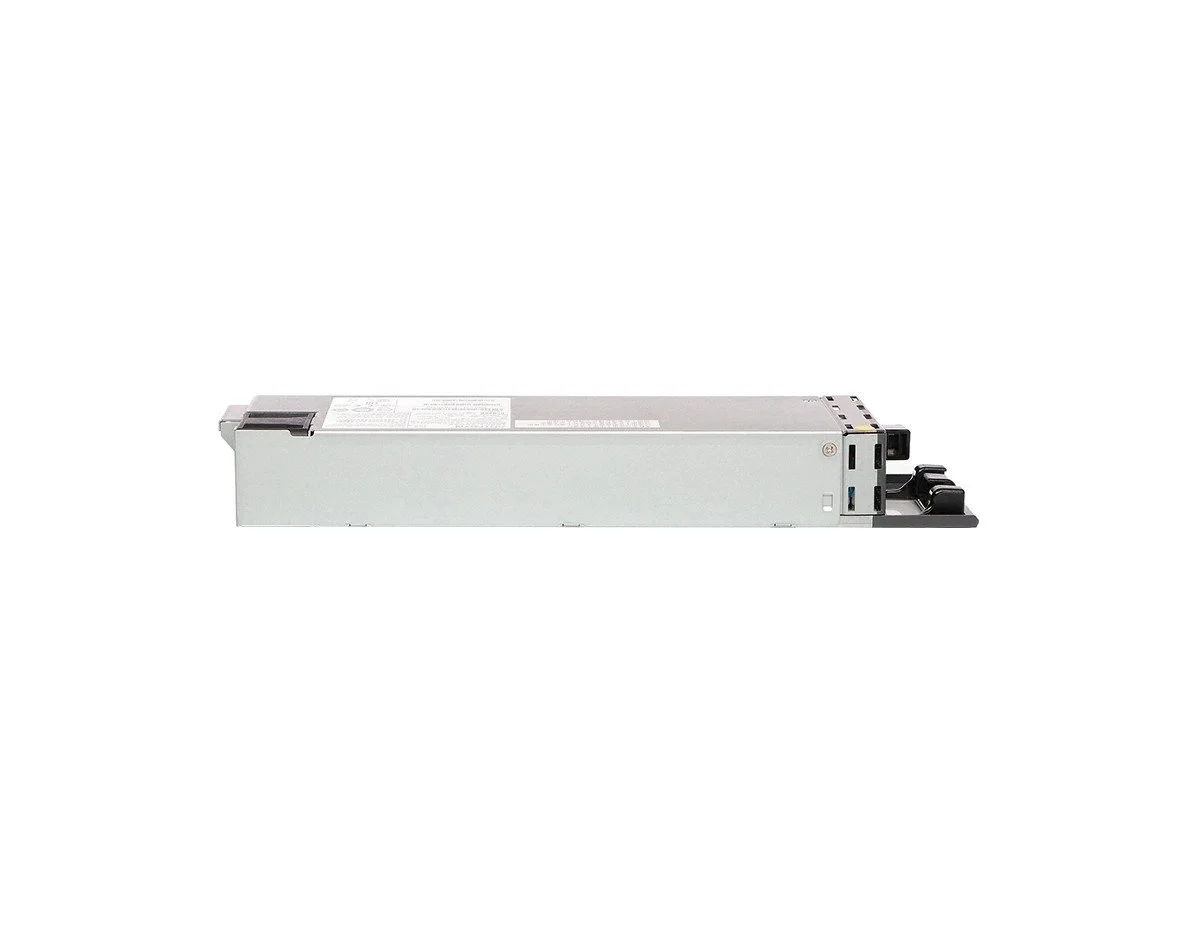

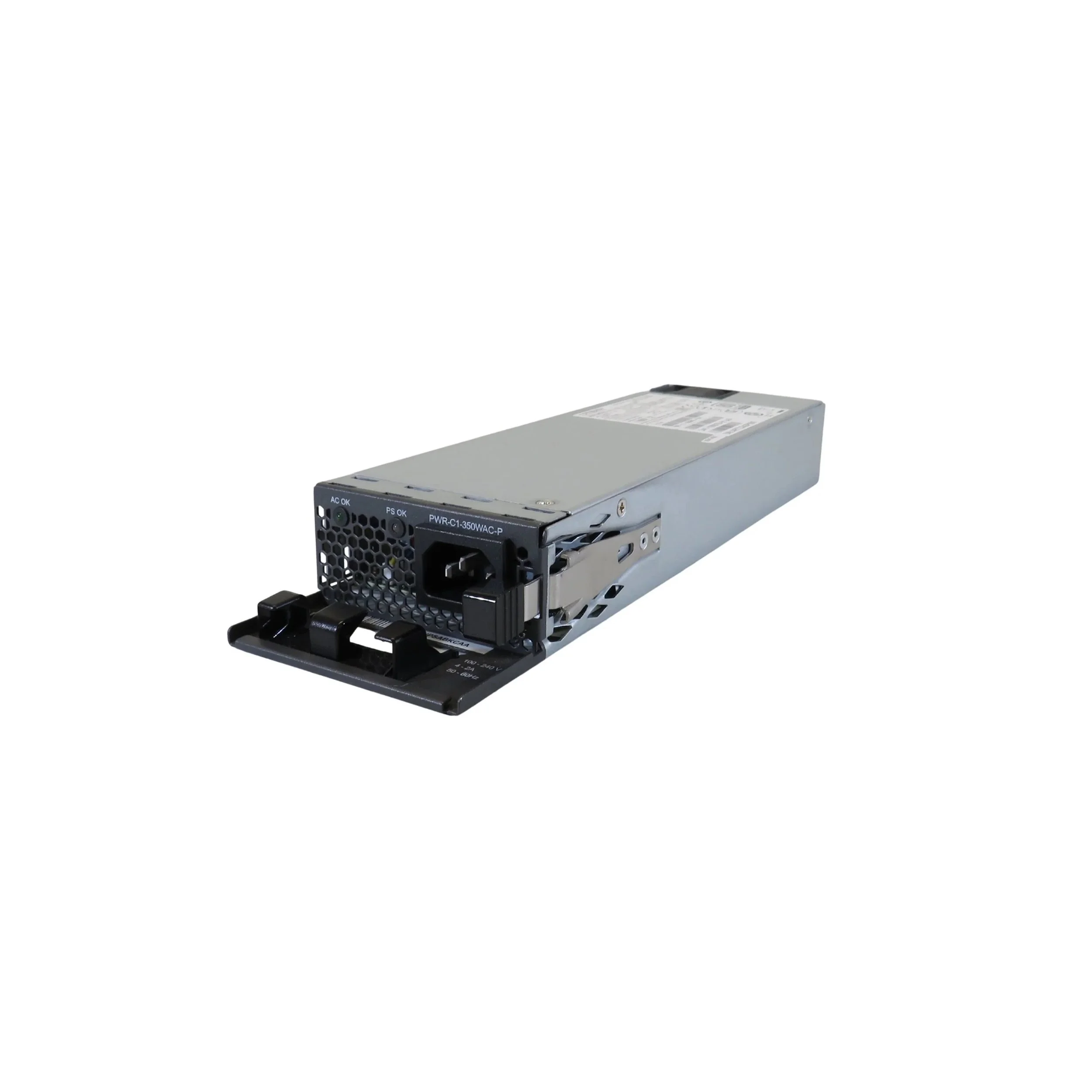

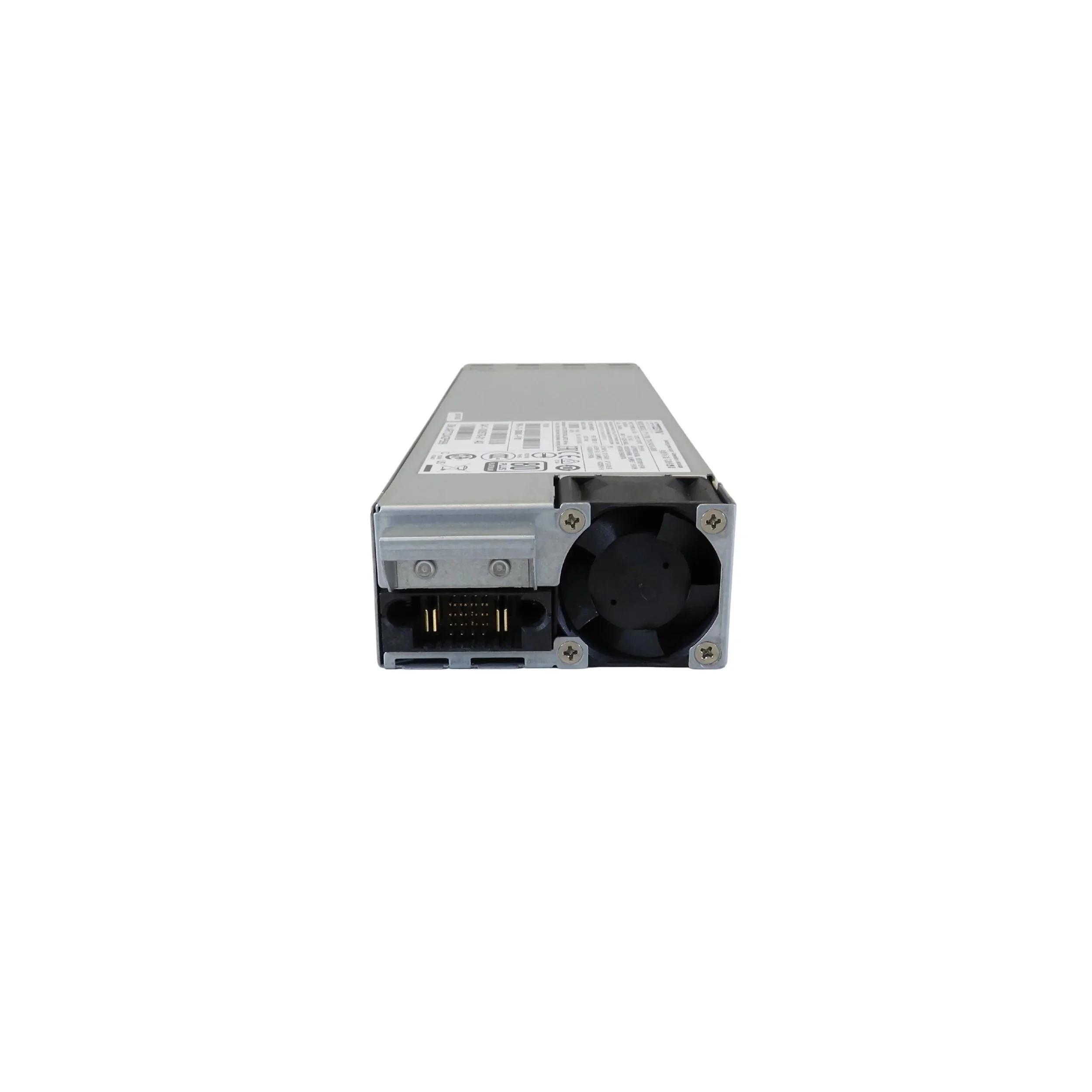

The PWR-C1-350WAC-P is a Cisco Catalyst 9300 Series 350W AC 80 PLUS Platinum Hot-Swappable Power Supply — delivering -56V/6.25A output with 100–240V AC input, IEC C14 connector, and Platinum-rated efficiency for enterprise network deployments.

350W AC Power Supply | Hot-Swappable | 80 PLUS Platinum | -56V @ 6.25A Output | 100–240V AC Input | IEC 320-C14 | For Catalyst 9300 Series

Specifications:

Brand: Cisco | Model: PWR-C1-350WAC-P | Type: Hot-Plug Redundant Power Supply | Output: 350W | Output Voltage: -56V DC @ 6.25A | Input: 100–240V AC | Frequency: 50–60Hz | Input Current: 2–4A | Connector: IEC 320-C14 | Hold-Up Time: 20ms min @ 100VAC | Heat Dissipation: 1,194 BTU/hr | Weight: 1.2 kg (2.3 lbs) | MTBF: 1,335,012 hours

Physical:

Dimensions: 40.1 x 82.6 x 309.9 mm (1.58 x 3.25 x 12.20 in.)

Compatible Switches:

Cisco Catalyst 9300 Series (C9300-24T, C9300-48T, C9300L-24T, C9300L-48T)

Features:

Hot-Swappable | 80 PLUS Platinum Efficiency | Surge Protection | Overload Protection | Status LED Indicators
