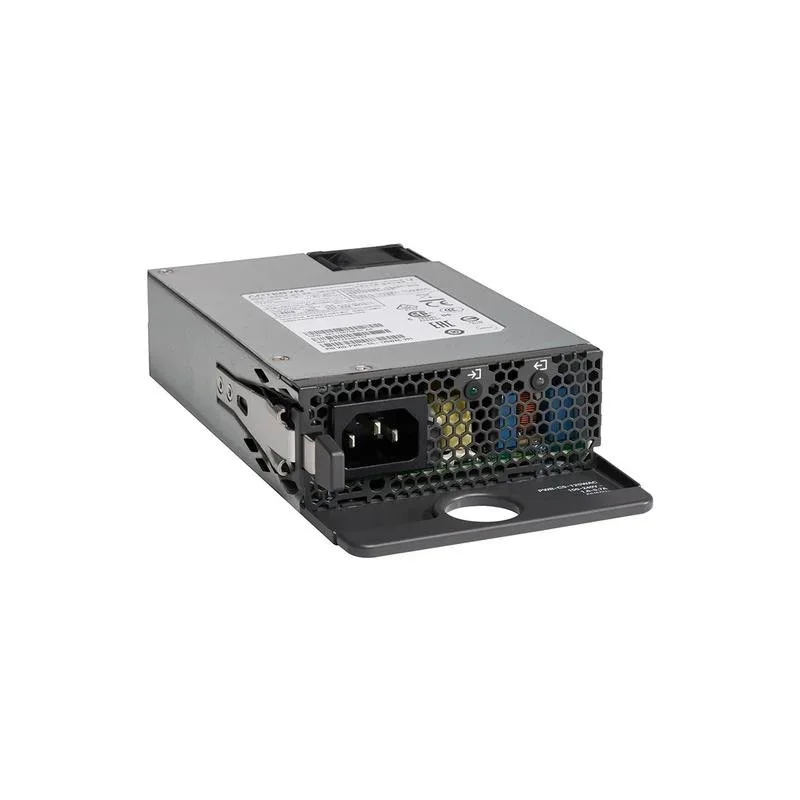

The PWR-C6-125WAC is a Cisco Catalyst 9300 Series 125W AC Hot-Swappable Power Supply — delivering 12V/10.5A output with universal 100–240V AC input, IEC C16 connector, and zero-downtime hot-swap capability for non-PoE Catalyst 9300 deployments.
125W AC Power Supply | Hot-Swappable | 12V @ 10.5A Output | 100–240V AC Input | IEC 320-C16 | For Catalyst 9300 Series
Specifications:
Brand: Cisco | Model: PWR-C6-125WAC | Type: Hot-Plug Redundant Power Supply | Output: 125W | Output Voltage: 12V DC @ 10.5A | Input: 100–240V AC | Frequency: 50–60Hz | Input Current: 1.6–0.7A | Connector: IEC 320-C16 | Heat Dissipation: 426.5 BTU/hr | Weight: 0.77 kg (1.7 lbs)
Physical:
Dimensions: 40.1 x 101.6 x 193 mm (1.58 x 4.0 x 7.6 in.)
Compatible Switches:
Cisco Catalyst 9300 Series
Features:
Hot-Swappable | Overload Protection | Short-Circuit Prevention | Status LED Indicators
The PWR-C6-125WAC is a Cisco Catalyst 9300 Series 125W AC Hot-Swappable Power Supply — delivering 12V/10.5A output with universal 100–240V AC input, IEC C16 connector, and zero-downtime hot-swap capability for non-PoE Catalyst 9300 deployments.
125W AC Power Supply | Hot-Swappable | 12V @ 10.5A Output | 100–240V AC Input | IEC 320-C16 | For Catalyst 9300 Series
Specifications:
Brand: Cisco | Model: PWR-C6-125WAC | Type: Hot-Plug Redundant Power Supply | Output: 125W | Output Voltage: 12V DC @ 10.5A | Input: 100–240V AC | Frequency: 50–60Hz | Input Current: 1.6–0.7A | Connector: IEC 320-C16 | Heat Dissipation: 426.5 BTU/hr | Weight: 0.77 kg (1.7 lbs)
Physical:
Dimensions: 40.1 x 101.6 x 193 mm (1.58 x 4.0 x 7.6 in.)
Compatible Switches:
Cisco Catalyst 9300 Series
Features:
Hot-Swappable | Overload Protection | Short-Circuit Prevention | Status LED Indicators
