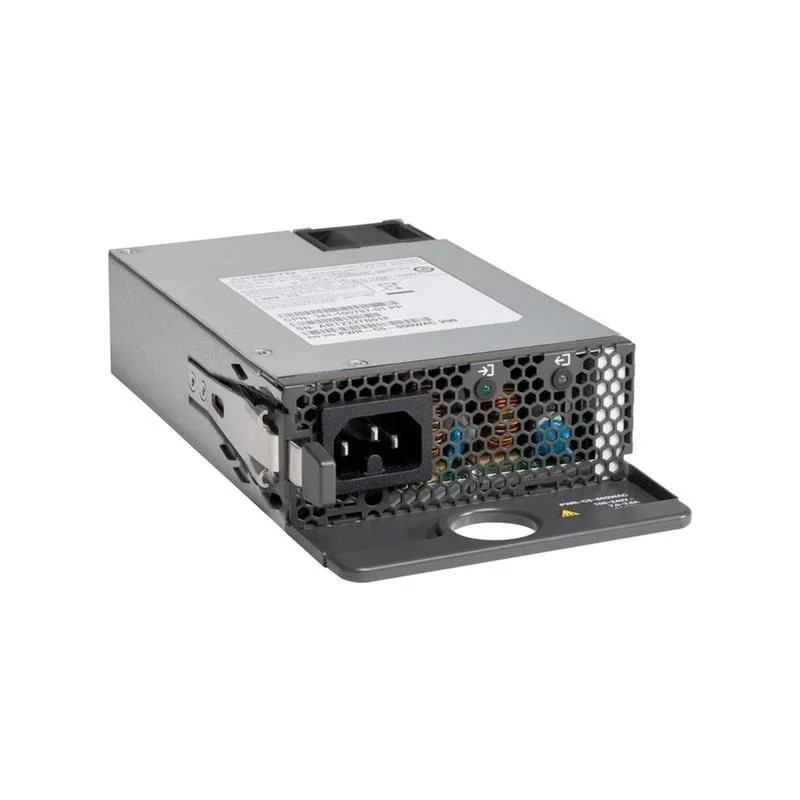

The PWR-C6-600WAC is a Cisco Catalyst 9300 Series 600W AC Hot-Swappable Power Supply — delivering 54V/11.1A output with universal 100–240V AC input, IEC C16 connector, and PoE+ support for high-availability enterprise deployments.
600W AC Power Supply | Hot-Swappable | 54V @ 11.1A Output | 100–240V AC Input | IEC 320-C16 | For Catalyst 9300 Series | PoE+ Support
Specifications:
Brand: Cisco | Model: PWR-C6-600WAC | Type: Hot-Plug Redundant Power Supply | Output: 600W | Output Voltage: 54V DC @ 11.1A | Input: 100–240V AC | Frequency: 50–60Hz | Input Current: 2.8–7A | Connector: IEC 320-C16 | Heat Dissipation: 2,047.3 BTU/hr | Weight: 0.9 kg (2 lbs)
Physical:
Dimensions: 40.1 x 101.6 x 193 mm (1.58 x 4.0 x 7.6 in.)
Compatible Switches:
Cisco Catalyst 9300 Series
Features:
Hot-Swappable | PoE+ Support | Overload Protection | Short-Circuit Prevention | Status LED Indicators
The PWR-C6-600WAC is a Cisco Catalyst 9300 Series 600W AC Hot-Swappable Power Supply — delivering 54V/11.1A output with universal 100–240V AC input, IEC C16 connector, and PoE+ support for high-availability enterprise deployments.
600W AC Power Supply | Hot-Swappable | 54V @ 11.1A Output | 100–240V AC Input | IEC 320-C16 | For Catalyst 9300 Series | PoE+ Support
Specifications:
Brand: Cisco | Model: PWR-C6-600WAC | Type: Hot-Plug Redundant Power Supply | Output: 600W | Output Voltage: 54V DC @ 11.1A | Input: 100–240V AC | Frequency: 50–60Hz | Input Current: 2.8–7A | Connector: IEC 320-C16 | Heat Dissipation: 2,047.3 BTU/hr | Weight: 0.9 kg (2 lbs)
Physical:
Dimensions: 40.1 x 101.6 x 193 mm (1.58 x 4.0 x 7.6 in.)
Compatible Switches:
Cisco Catalyst 9300 Series
Features:
Hot-Swappable | PoE+ Support | Overload Protection | Short-Circuit Prevention | Status LED Indicators
