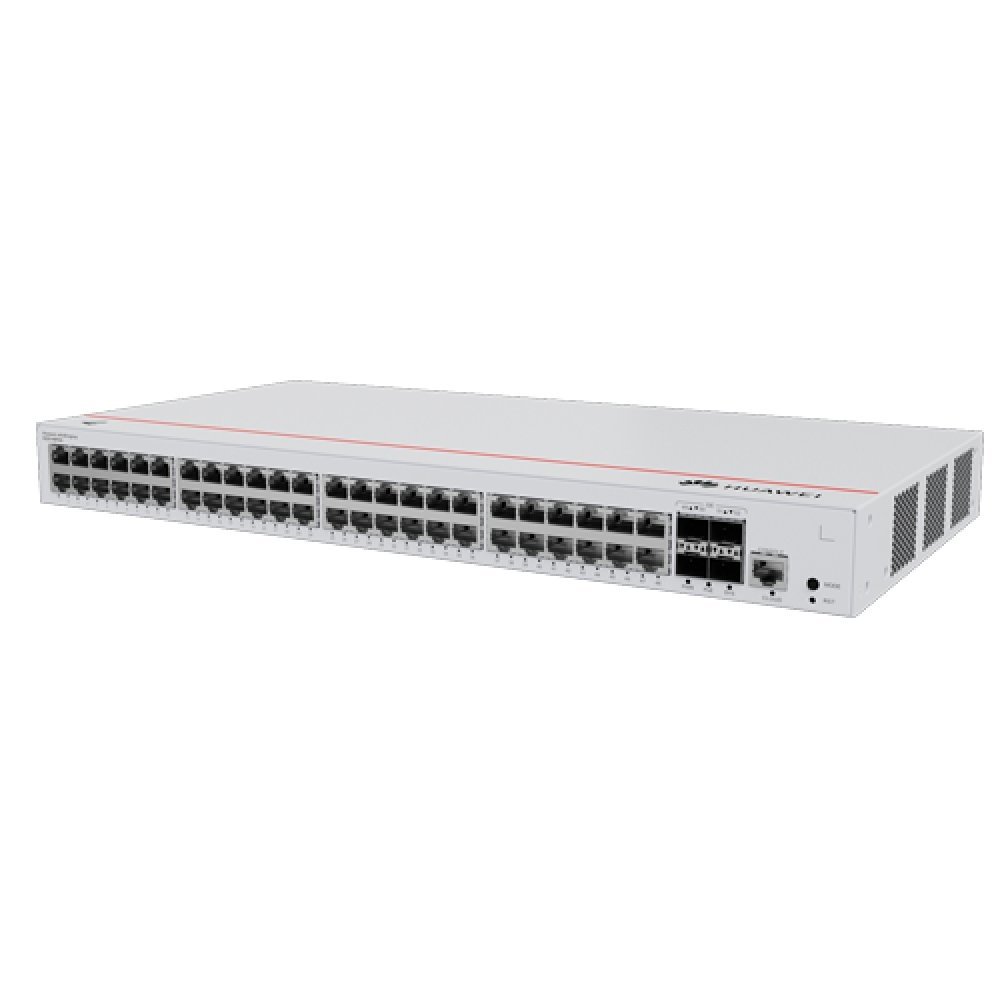

The S220-48P4X is a Huawei eKitEngine Smart Managed PoE+ Switch with 48x Gigabit PoE+ ports, 380W PoE budget, and 4x 10GE SFP+ uplinks — delivering high-speed connectivity, intelligent QoS, and advanced Layer 2/3 features for enterprise campus and data center deployments.
380W PoE Budget | 48x Gigabit PoE+ Ports | 4x 10GE SFP+ Uplinks | L2/L3 Smart Managed | Built-in AC Power | Cloud + On-Premise Management
Specifications:
Brand: Huawei | Model: S220-48P4X | Part Number: 98012378 | Series: eKitEngine S220 | Ports: 48x 10/100/1000BASE-T PoE+ + 4x 10GE SFP+ | Console: 1x RJ45 | PoE Budget: 380W | Memory: 2GB | Flash: 1GB | Form Factor: 1U Rack | Chassis: Metal | IP Rating: IP20
Performance:
Typical Power: 49.44W | Max Power (Full PoE): 462.80W | Fans: 2 Built-in | MTBF: 48.14 years
Power:
Input: 100–240V AC, 50/60Hz | Max Current: 6A | Surge Protection: ±7KV (Service Port)
Physical:
Dimensions: 43.6 x 442.0 x 227.0 mm | Weight: 3.24 kg (7.14 lbs.)
Temperature:
Operating: -5°C to +50°C | Storage: -40°C to +70°C | Humidity: 5–95% RH (non-condensing)
Features:
Layer 2/3 Switching | QoS | VLAN | ACL | 802.1X | DHCP Snooping | ARP Inspection | DoS Prevention | IPv4/IPv6 | Zero-Touch Deployment | Energy-Efficient Design
Management:
Huawei eKit App | SNMP | CLI | Web UI | SSH | Cloud + On-Premise Management
The S220-48P4X is a Huawei eKitEngine Smart Managed PoE+ Switch with 48x Gigabit PoE+ ports, 380W PoE budget, and 4x 10GE SFP+ uplinks — delivering high-speed connectivity, intelligent QoS, and advanced Layer 2/3 features for enterprise campus and data center deployments.
380W PoE Budget | 48x Gigabit PoE+ Ports | 4x 10GE SFP+ Uplinks | L2/L3 Smart Managed | Built-in AC Power | Cloud + On-Premise Management
Specifications:
Brand: Huawei | Model: S220-48P4X | Part Number: 98012378 | Series: eKitEngine S220 | Ports: 48x 10/100/1000BASE-T PoE+ + 4x 10GE SFP+ | Console: 1x RJ45 | PoE Budget: 380W | Memory: 2GB | Flash: 1GB | Form Factor: 1U Rack | Chassis: Metal | IP Rating: IP20
Performance:
Typical Power: 49.44W | Max Power (Full PoE): 462.80W | Fans: 2 Built-in | MTBF: 48.14 years
Power:
Input: 100–240V AC, 50/60Hz | Max Current: 6A | Surge Protection: ±7KV (Service Port)
Physical:
Dimensions: 43.6 x 442.0 x 227.0 mm | Weight: 3.24 kg (7.14 lbs.)
Temperature:
Operating: -5°C to +50°C | Storage: -40°C to +70°C | Humidity: 5–95% RH (non-condensing)
Features:
Layer 2/3 Switching | QoS | VLAN | ACL | 802.1X | DHCP Snooping | ARP Inspection | DoS Prevention | IPv4/IPv6 | Zero-Touch Deployment | Energy-Efficient Design
Management:
Huawei eKit App | SNMP | CLI | Web UI | SSH | Cloud + On-Premise Management
