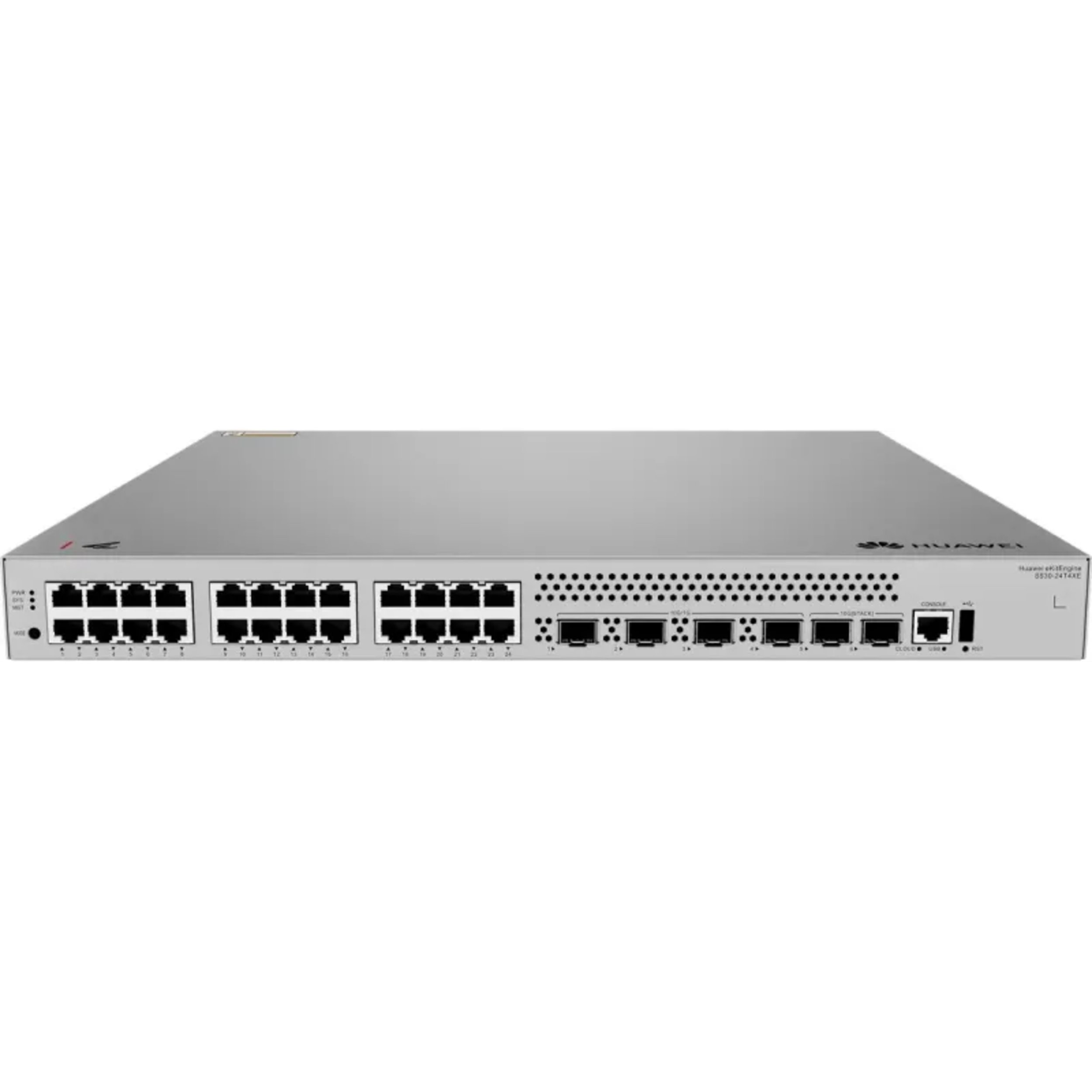

S530-24T4XE

$503.71

The S530-24T4XE is a Huawei eKitEngine Layer 3 Managed Switch with 24x Gigabit RJ45 ports, 4x 10GE SFP+ uplinks, 2x 12GE stack ports, and 176 Gbps switching capacity — ideal for enterprise campus and distribution layer deployments.

24x Gigabit RJ45 Ports | 4x 10GE SFP+ Uplinks | 2x 12GE Stack Ports | 176 Gbps Switching | 132 Mpps Forwarding | L3 Managed | 1+1 Power Redundancy | Cloud + On-Premise Management

Specifications:

Brand: Huawei | Model: S530-24T4XE | Series: eKitEngine S530 | Ports: 24x 10/100/1000BASE-T + 4x 10GE SFP+ + 2x 12GE Stack | Console: 1x RJ45 | USB: 1x USB 2.0 | Switching Capacity: 176 Gbps | Forwarding Rate: 132 Mpps | Form Factor: 1U Rack | Power: 1x AC Power Module (1+1 Redundancy Supported)

Features:

Layer 2/3 Switching | Static + Dynamic Routing | IPv4/IPv6 Dual Stack | VLAN | ACL | 802.1X | ARP Inspection | DoS Prevention | DHCP Snooping | IGMP | Multicast | Zero-Touch Deployment | One-Click Upgrade

Management:

Huawei eKit App | SNMP v1/v2c/v3 | CLI | Web UI | SSH v2.0 | RMON | Cloud + On-Premise Management

The S530-24T4XE is a Huawei eKitEngine Layer 3 Managed Switch with 24x Gigabit RJ45 ports, 4x 10GE SFP+ uplinks, 2x 12GE stack ports, and 176 Gbps switching capacity — ideal for enterprise campus and distribution layer deployments.

24x Gigabit RJ45 Ports | 4x 10GE SFP+ Uplinks | 2x 12GE Stack Ports | 176 Gbps Switching | 132 Mpps Forwarding | L3 Managed | 1+1 Power Redundancy | Cloud + On-Premise Management

Specifications:

Brand: Huawei | Model: S530-24T4XE | Series: eKitEngine S530 | Ports: 24x 10/100/1000BASE-T + 4x 10GE SFP+ + 2x 12GE Stack | Console: 1x RJ45 | USB: 1x USB 2.0 | Switching Capacity: 176 Gbps | Forwarding Rate: 132 Mpps | Form Factor: 1U Rack | Power: 1x AC Power Module (1+1 Redundancy Supported)

Features:

Layer 2/3 Switching | Static + Dynamic Routing | IPv4/IPv6 Dual Stack | VLAN | ACL | 802.1X | ARP Inspection | DoS Prevention | DHCP Snooping | IGMP | Multicast | Zero-Touch Deployment | One-Click Upgrade

Management:

Huawei eKit App | SNMP v1/v2c/v3 | CLI | Web UI | SSH v2.0 | RMON | Cloud + On-Premise Management
